Halcyon Symbios CCR Pod 5 Pin

Halcyon Symbios CCR Pod 5 Pin - Male

$625.00

Availability: In Stock (1)

Part Number:80.300.011 Manufacturer: Halcyon

Description

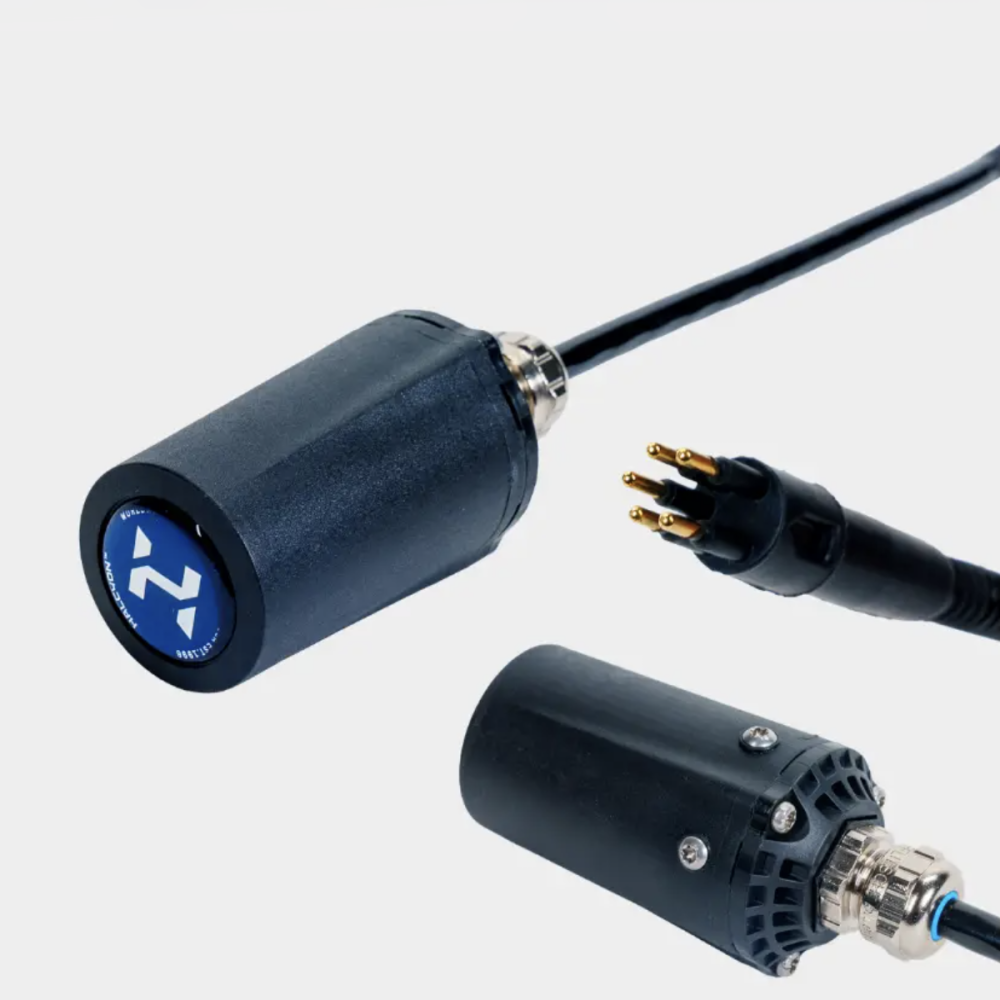

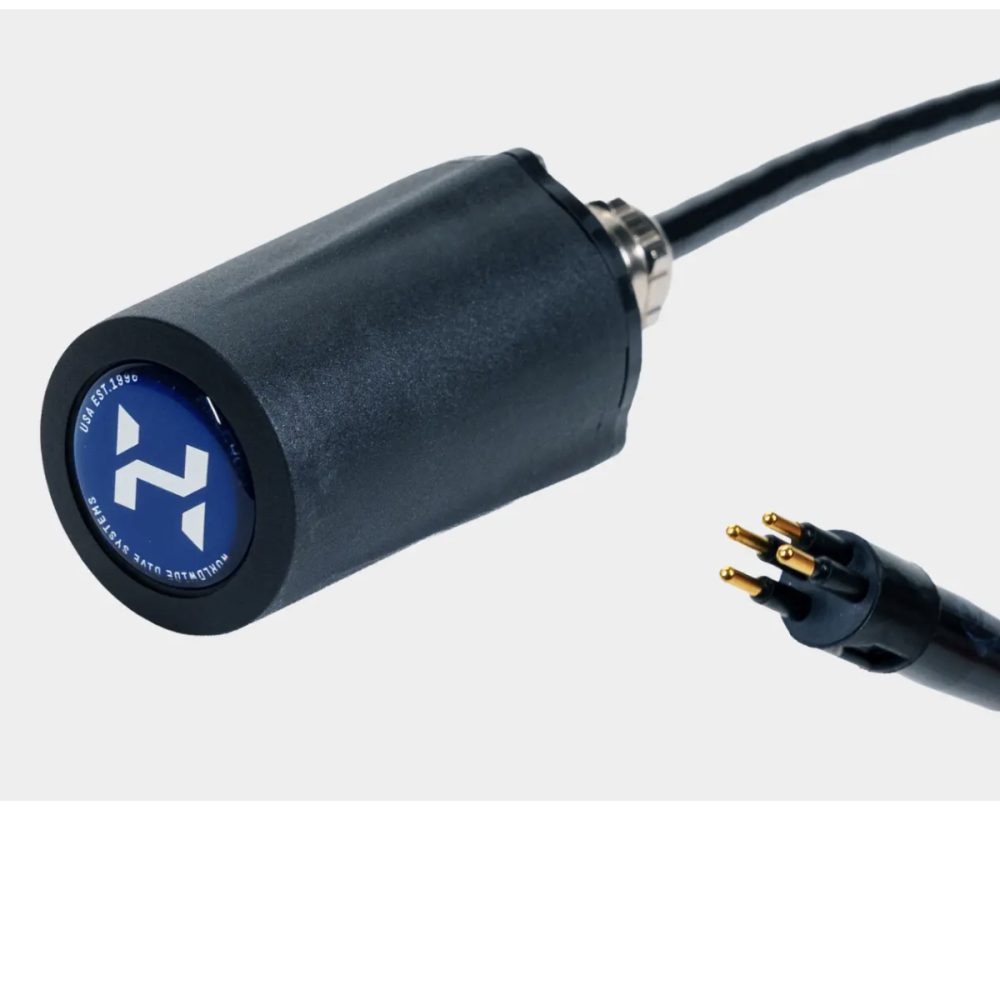

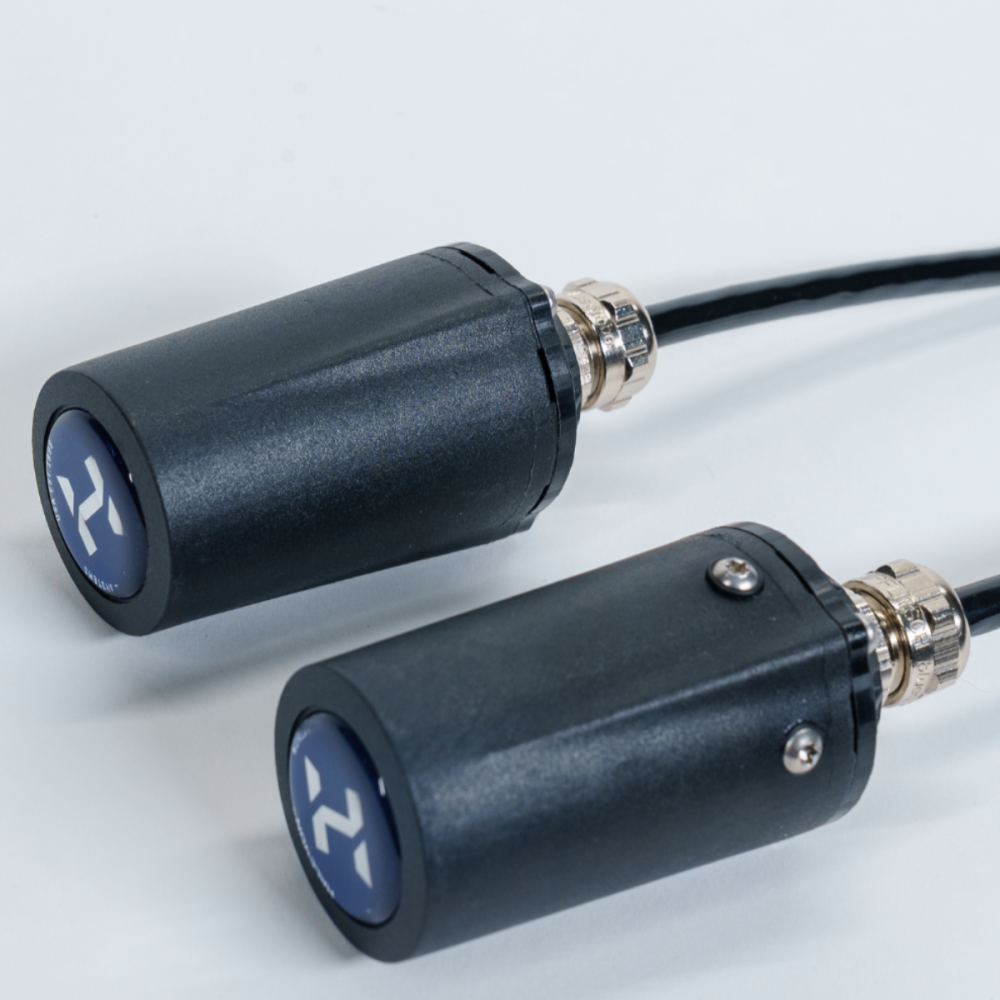

Halcyon Symbios CCR Pod 5 Pin - Male

The Symbios technology includes a sleek, ultra-slim handset with intuitive controls and a state-of-the-art hybrid transflective color screen for optimal visibility in all lighting conditions. The compact, high-resolution HUD computer offers a full range of features in a small form factor. The tank pod can provide wireless communication with the computers and up to 9 devices in total.

The Symbios system is eco-conscious, with a rechargeable battery and cutting-edge connectivity, including integration with a growing suite of devices and buddy-sharing capabilities.

Comprehensive app support provides unparalleled control, community interaction, and personalized settings.

The technology is ready to integrate with rebreathers seamlessly and offers versatile operation for various diving modes. The sophisticated wireless technology ensures data integrity and fulfills all EMC requirements.

Symbios Technology combines advanced features, user-friendly design, and environmental consciousness to elevate the diving experience.

Specifications

Symbios CCR Pod At a Glance

Wireless CCR Data
Transmits real-time rebreather data to the Symbios Silver Handset and HUD.

Individual Cell Readings
Displays the pO? reading from each connected oxygen sensor.

Analog and CAN Bus Options
Available for compatible analog rebreathers and CAN bus systems.

One-Second Transmission
Updates transmitted CCR data once every second.

Specifications

General

Wireless connection between compatible CCRs and Symbios dive computers
Compatible displays: Symbios Silver Handset and Symbios HUD
Wireless magnetic transmission
Transmission frequency: 125 kHz
Transmission interval: Once per second
Transmission range: Up to 90 cm / 35 in
Dimensions: 90 mm / 3.5 in long × 40 mm / 1.6 in diameter
Weight: Approximately 110 g / 3.9 oz
Available for analog and CAN bus rebreather systems

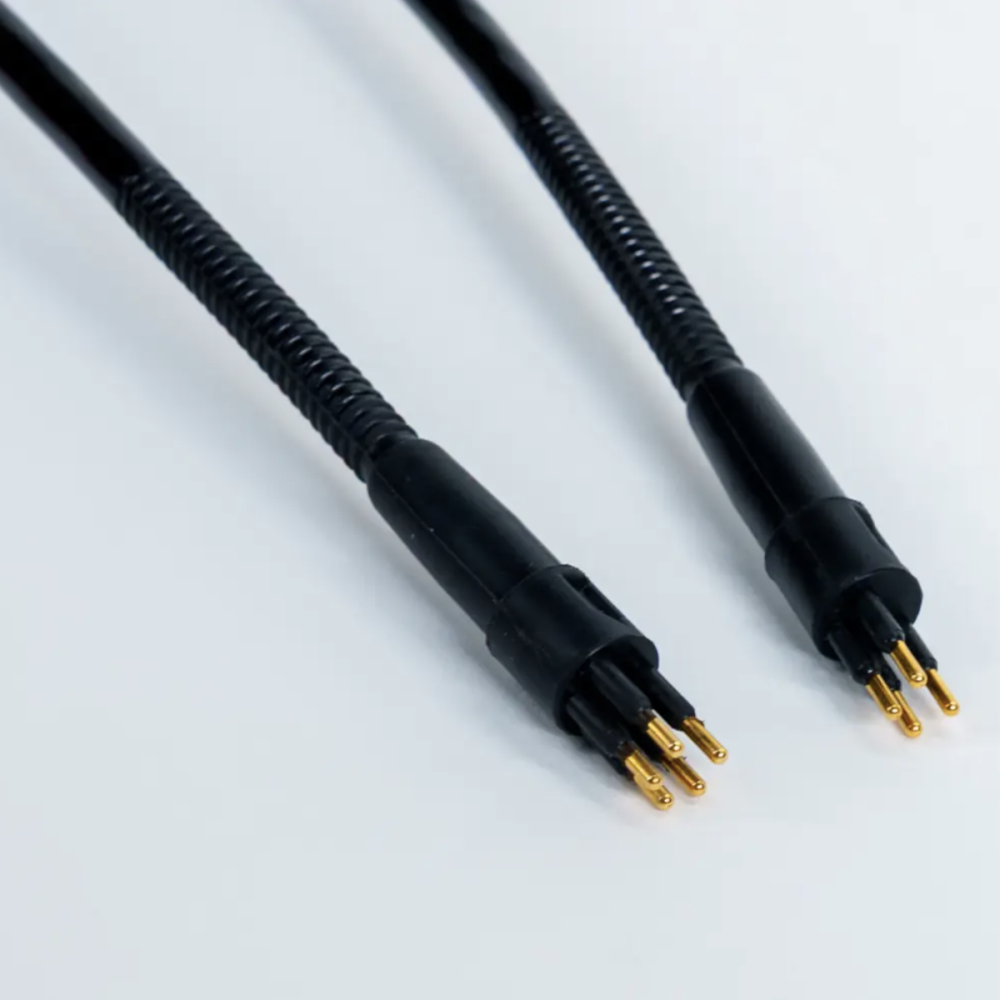

Fischer and AK4 Analog Versions

Compatible with rebreathers using a 7-pin Fischer or AK4 connector
Connects to up to three analog pO? sensors
Compatible sensor output: 8–15 mV at 0.21 bar pO?
Compatible with Halcyon GREENFLASH optical pO? sensors set to analog mode
Battery: CR123 lithium
Battery life: Up to 200 diving hours
Standby time: Up to one year
Automatically enters sleep mode after more than 15 minutes of stable sensor output

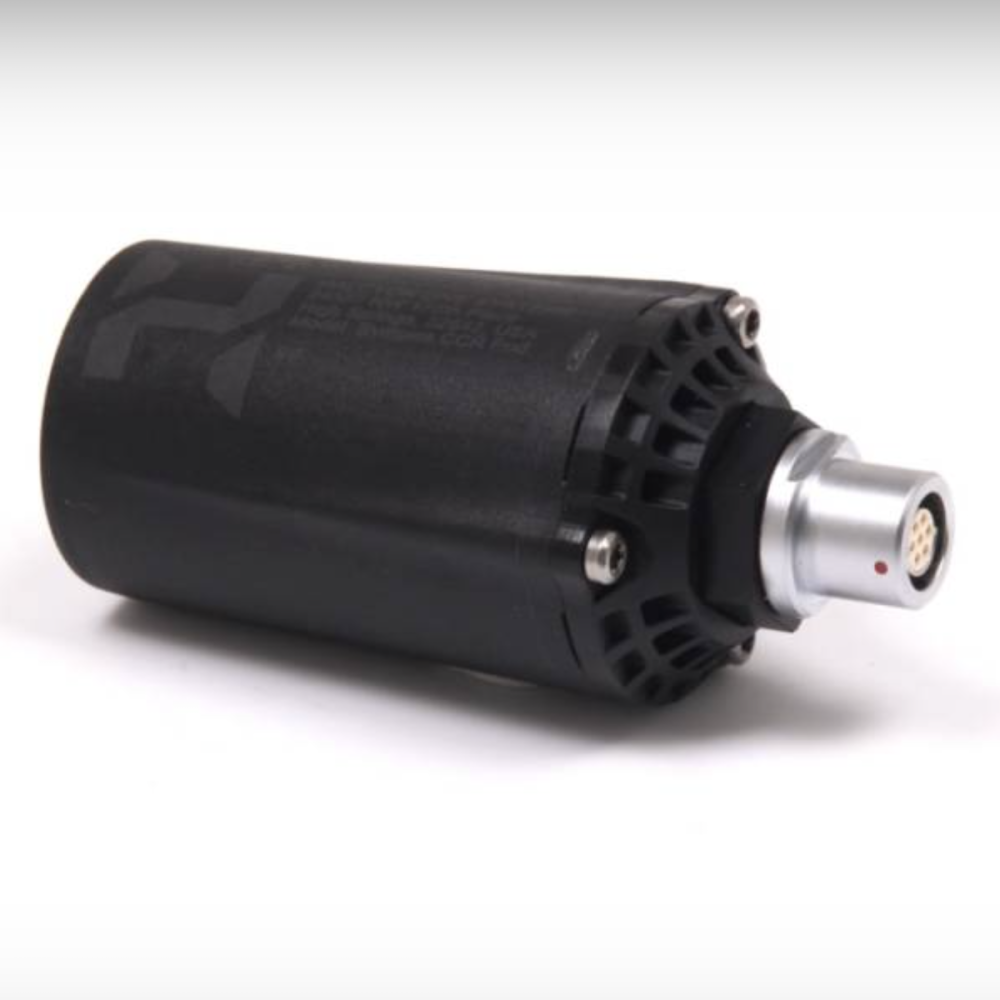

AK5 CAN Bus Version
