The R22S sensors meet the supplier's specifications with a "linearity" value of 2-3% over the full range of 0-100% O2.

Due to the slightly higher "linearity" value, the 100% Oxygen values can be analysed, but the sensors are the most accurate when used to measure values <50% of Oxygen.

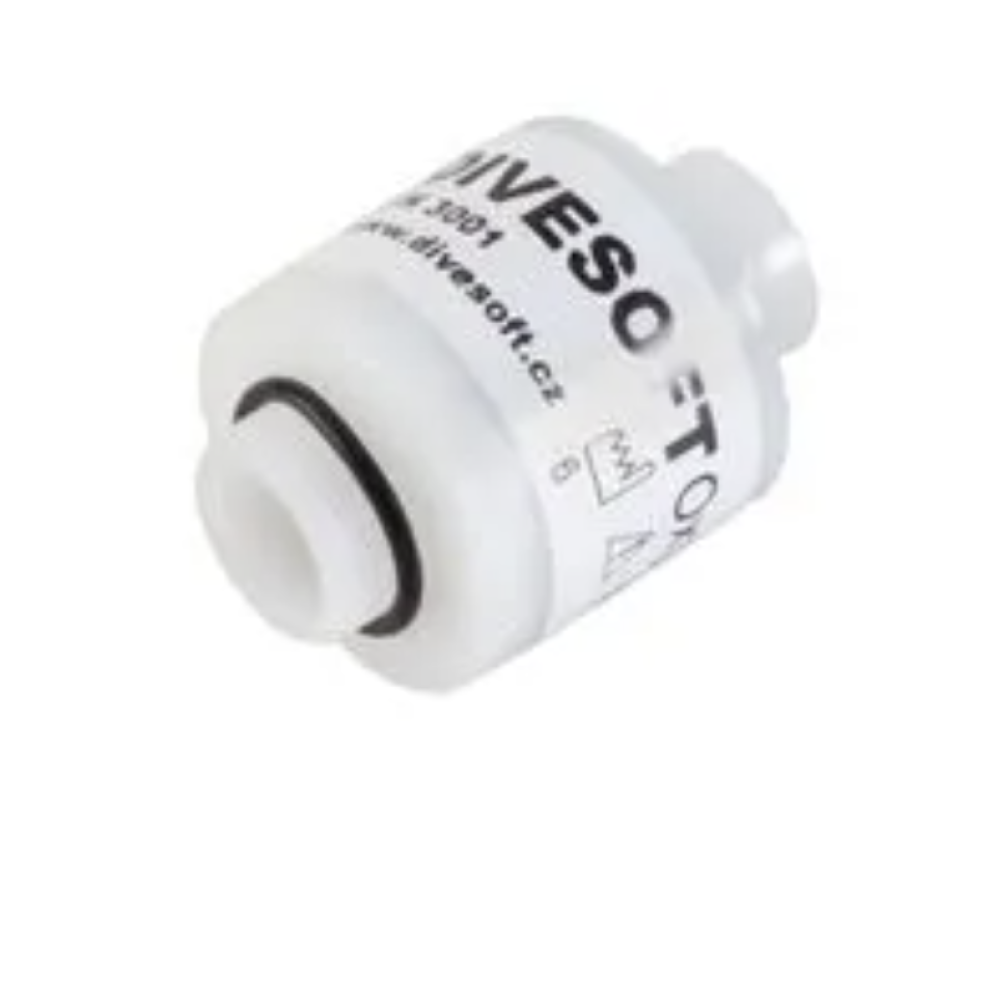

Oxygen sensor Divesoft type 22S with a three-pin Molex connector. It is designed as a spare part for the Divesoft analyzer, but it can also be used for other apparatuses. Range 0–100%. The sensor’s accuracy is ± 1% from the full scale under constant temperature and pressure.

All sensors are registered under their unique serial number. All electrochemical sensors sold by Divesoft carry a limited warranty of 12 months.

Technical Specs

Warranty: 1 year

Life expectancy in analyzer: cca 2 years
